general
Description	Alq3	Liq	NPB
CAS No	2085-33-8	850918-68-2	123847-85-8
M/W	459.43	151.06	588.74
Structure
Appearance	Yellow Powder	Yellow Powder	Light-Yellow Powder
mP	415 ~ 419	364 ~ 367	-

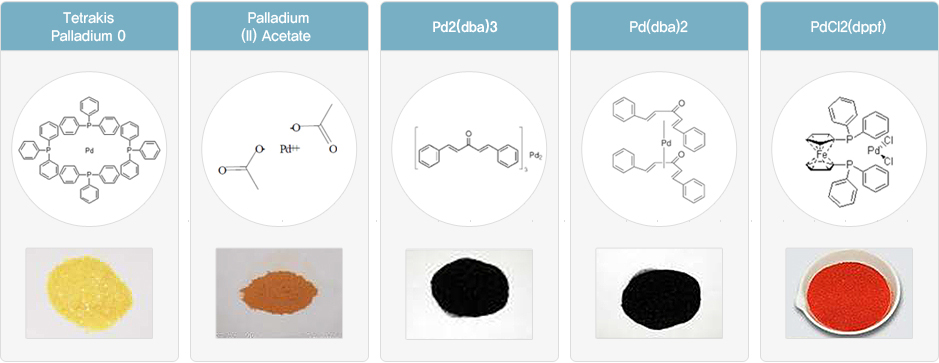

유기합성시 반응성을 높이기 위해 사용하는 물질로 당사에서 생산하는 촉매는 OLED 재료를 생산하는데 사용되는 촉매를 생산 판매

■EBL Materials

Distribution
Name	HOMO(eV)	LUMO(eV)	Eg(eV)	UV(nm)	TGA(0.5%,°C)	Tg(°C)	T1,(eV)
EB-915	-5.13	-2.17	2.96	419	449	132	2.66
EB-921	-5.40	-2.13	3.27	345	414	124	2.72
EB-922	-5.42	-2.06	3.36	324	407	120	2.79
EB-923	-5.39	-2.16	3.23	323	387	121	2.71
EB-924	-5.39	-2.22	3.17	356	377	141	2.62

■ HOMO : cyclic voltammetry(ref electrode : Ag/AgCl / 0.1M Bu4NBF in acetonitrile / Ferrocene)
■ T1 : DFT calculation

■OLED 중간체

■HTL Materials

HTL
Name	HOMO(eV)	LUMO(eV)	Eg(eV)	UV(nm)	TGA(0.5%,°C)	Tg(°C)	T1,(eV)	Mobility(em2,V/s)
PNH_2006	-5.25	-2.37	2.88	430	445	153	2.64	2.1*10-6
PNH_2015	-5.13	-2.17	2.96	419	449	132	5.66	5.1*10-5
PNH_2020	-5.28	-2.52	2.76	450	449	-	2.87	-
PNH_2023	-5.09	-2.15	2.94	422	493	145	2.62	5.30*10-4
PNH_2039	-5.14	-2.14	3.0	414	-	132	-	-
PNH_2040	-5.00	-1.96	3.02	410	-	129	-	1.2*10-4
PNH_2045	-5.18	-2.18	3.0	7.6		144	-	-
PNH_2056	-5.21	-2.14	3.07	404	424	153	-	1.3*10-4
PNH_2062	-5.06	-2.05	3.01	411	384	117	-

■ HOMO : cyclic voltammetry(ref electrode : Ag/AgCl / 0.1M Bu4NBF in acetonitrile / Ferrocene)
■ T1 : DFT Calculation
■ Mobility : SCLC

■기타 유기합성 재료

■Phosphorescent HOST Materials

HOST
Name	HOMO(eV)	LUMO(eV)	Eg(eV)	T1,(eV)	TGA(0.5%,°C)	Tm(°C)
PNH-3016	-5.30	-2.36	2.94	2.74	443	220
PNH-3018	-5.52	-2.47	3.05	2.58	443	243
PNH-3024	-5.58	-2.18	3.40	2.73	432	-
PNH-3027	-5.40	-2.05	3.35	2.92	442	246
PNH-3028	-5.65	-2.24	3.41	2.75	449	276
PNH-3029	-5.84	-2.40	3.44	2.76	487	287

■ HOMO : cyclic voltammetry(ref electrode : Ag/AgCl / 0.1M Bu4NBF in acetonitrile / Ferrocene)
■ T1 : simulation (by DFT calculation)

■Blue Host & Dopant Materials

HOST
Name	HOMO(eV)	LUMO(eV)	Eg(eV)	PL_max	UV_edge	TGA(0.5%,°C)	Tg(°C)	Remarks
PNH-BH001	-5.59	-2.58	3.01	418	411	315	109
PNH-BH003	-5.62	-2.67	2.95	422	420	362	125
PNH-BH005	-5.53	-2.62	2.91	432	425	351	118
PNH-BD001	-5.03	-2.33	2.70	463	460	371	-	Dopant

■ cyclic voltammetry(ref electrode : Ag/AgCl / 0.1M Bu4NBF in acetonitrile / Ferrocene)
